City Sheet Metal offers a durable, architecturally versatile range of metal roofing and cladding systems designed to perform in demanding environments while delivering clean, modern aesthetics. Suitable for residential, commercial, agricultural, and industrial applications, these systems provide long service life, low maintenance, and reliable weather protection.
Available in a variety of profiles, materials, and finishes, metal roofing and cladding solutions can be used for roofs, walls, and accent features, supporting both functional performance and design intent. With colour-matched options and proven profile designs, City Sheet Metal supplies metal roofing and cladding systems that balance strength, efficiency, and visual appeal.
Mechanical Lock Panel
Snap Lock Panel
Diamond Rib Panel
Corrugated Panel
Mesa Panel

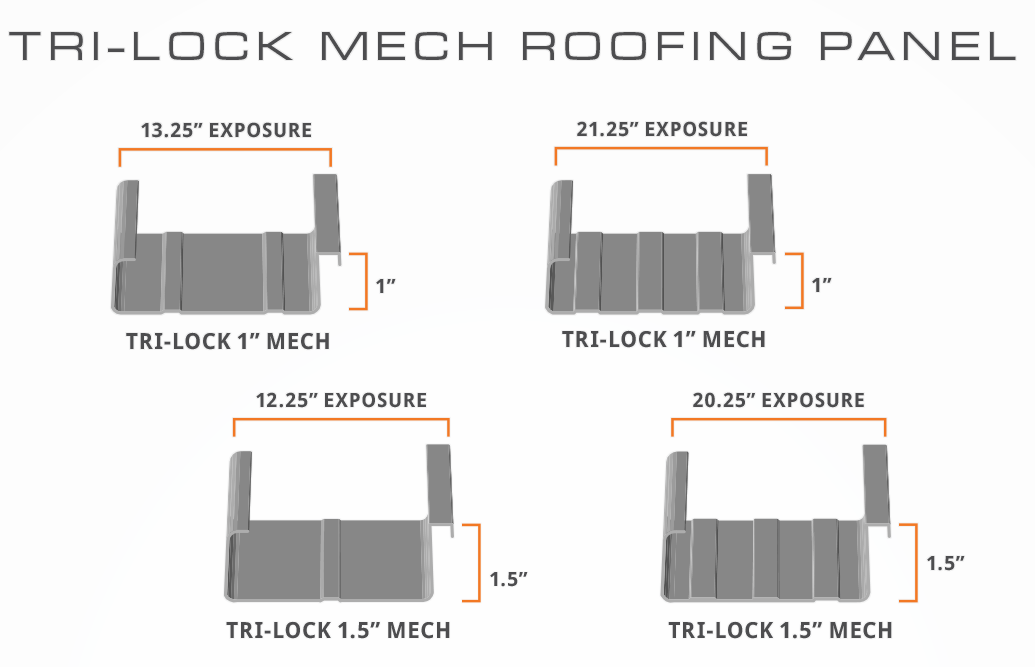

Mechanical Lock Panel
Mechanical Lock Panel
Mechanical lock panels provide a high-performance roofing and cladding solution designed for durability, weather resistance, and architectural precision. Panels are mechanically seamed for enhanced protection and can be customized to suit a wide range of project requirements.
Materials
26, 24, or 22 gauge Galvalume® or pre-painted steel
Aluminum
Copper
Zinc
Profile Options
1″ Rib Height: 13.25″, 17.25″, or 21.25″ exposure
(minimum 3/12 roof slope)1.5″ Rib Height: 12.25″, 16.25″, or 20.25″ exposure
(minimum 2/12 roof slope)
Customization
Panels available in custom lengths and a wide range of colours
Optional notched panels to hook onto the eave edge for a clean finish without face fasteners
Installation & Performance
Recommended installation over a solid substrate with compatible high-temperature ice & water shield or synthetic underlayment
Concealed clip system available in fixed (shorter panels) or floating (longer panels) options to accommodate thermal movement and help reduce oil canning
All roofing and cladding systems should be installed in accordance with local building codes.

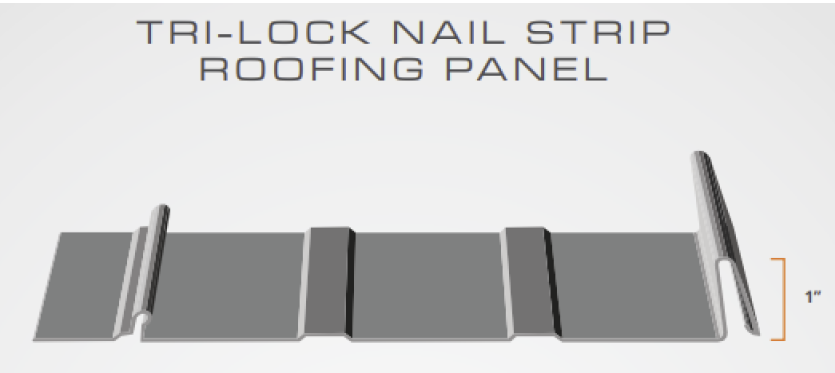

Snap Lock Panel
Snap Lock Panel
Snap lock panels deliver the clean, architectural appearance of a standing seam system with efficient installation. Panels snap together without mechanical seaming, making this profile a popular option for residential and light commercial roofing and cladding projects where speed and aesthetics are equally important.
Materials
26 or 24 gauge Galvalume® or pre-painted steel
Profile Options
1″ rib height snap-lock profile
Exposure options: 11.75″, 15.75″, or 19.75″
Minimum roof slope: 3/12 or greater for 1″ rib height
Customization
Panels available in custom lengths
Wide range of standard and premium colour options
Optional notched panels to hook onto the eave edge for a clean finish without face fasteners
Installation & Performance
Recommended installation over a solid substrate with compatible synthetic underlayment or high-temperature ice & water shield
Concealed clip attachment system provides a smooth, uninterrupted appearance
Faster installation compared to mechanically seamed panels
Suitable for roofing and vertical wall cladding applications
All roofing and cladding systems should be installed in accordance with local building codes and manufacturer guidelines
Install according to local building codes and manufacturer guidelines.

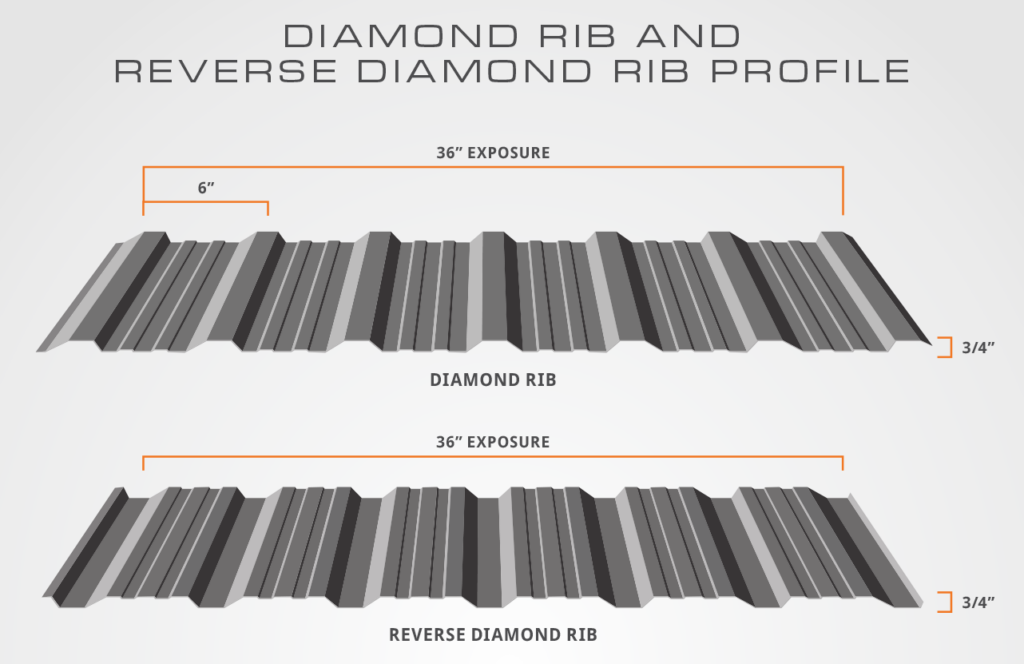

Diamond Rib Panel
Diamond Rib Panel
Diamond rib panels are a strong, economical solution for roofing and wall cladding across agricultural, commercial, and industrial applications. The exposed fastener design delivers durability and ease of installation.
Materials
29 or 26 gauge Galvalume® or pre-painted steel
Profile Options
Diamond rib exposed-fastener profile
Designed for roofing and siding applications
Customization
Standard and custom panel lengths available
Colour-matched options available to coordinate with trim and flashing
Installation & Performance
Exposed fastener system allows for efficient installation
Ribbed profile provides strength and rigidity
Suitable for a wide range of building types and environments
Install according to local building codes and manufacturer guidelines.

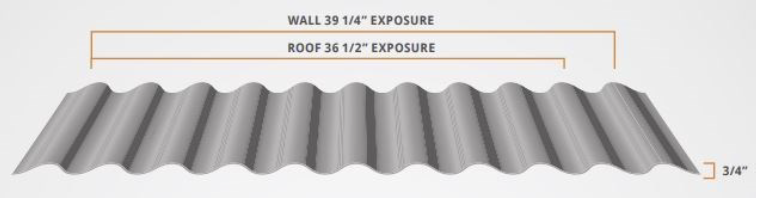

Corrugated Panel
Corrugated Panel
Corrugated panels offer a classic, time-tested profile with proven performance across a wide range of applications. The repeating wave design provides strength, flexibility, and visual texture, making corrugated panels a versatile choice for roofing and wall cladding.
Materials
26, 24, or 22 gauge Galvalume® or pre-painted steel
Available in all standard colours
Profile Options
Traditional corrugated wave profile
Exposed fastener system
Suitable for roof and wall applications
Minimum roof slope: 3/12 or greater
Customization
Panels available in standard and custom lengths
Broad colour selection to coordinate with trim and flashing systems
Installation & Performance
Recommended roof installation over a solid substrate with compatible synthetic underlayment or high-temperature ice & water shield
Exposed fastener design allows for straightforward, economical installation
Strong profile provides durability and resistance to impact and environmental stress
Suitable for residential, agricultural, commercial, and industrial applications
All roofing and cladding systems should be installed in accordance with local building codes and manufacturer guidelines
Install according to local building codes and manufacturer guidelines.

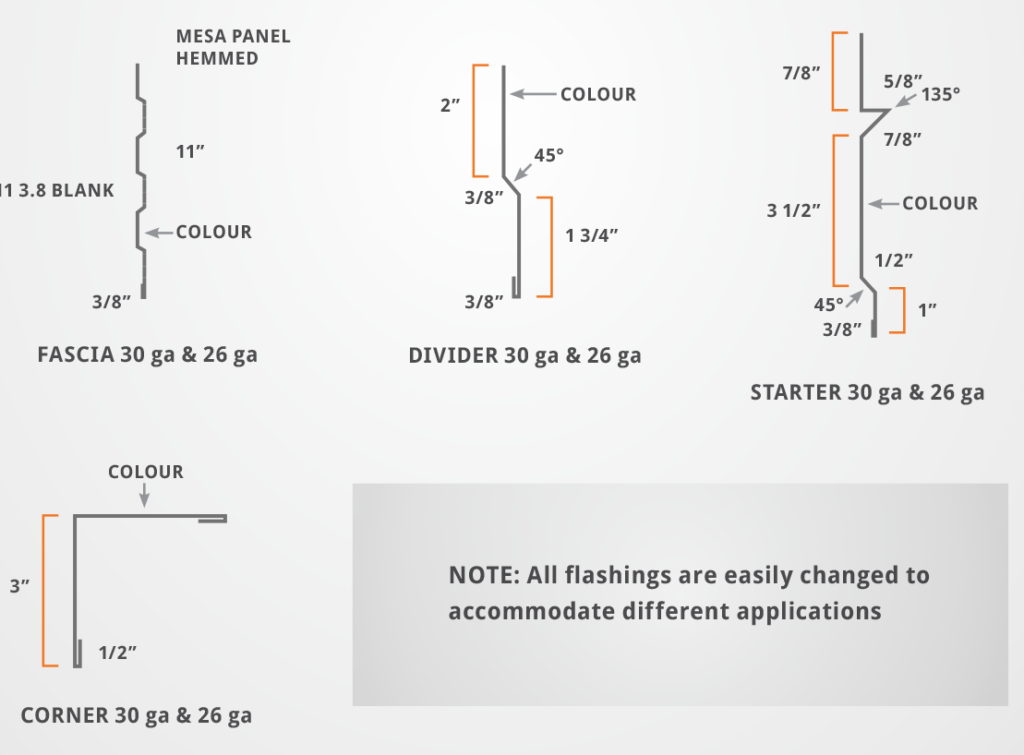

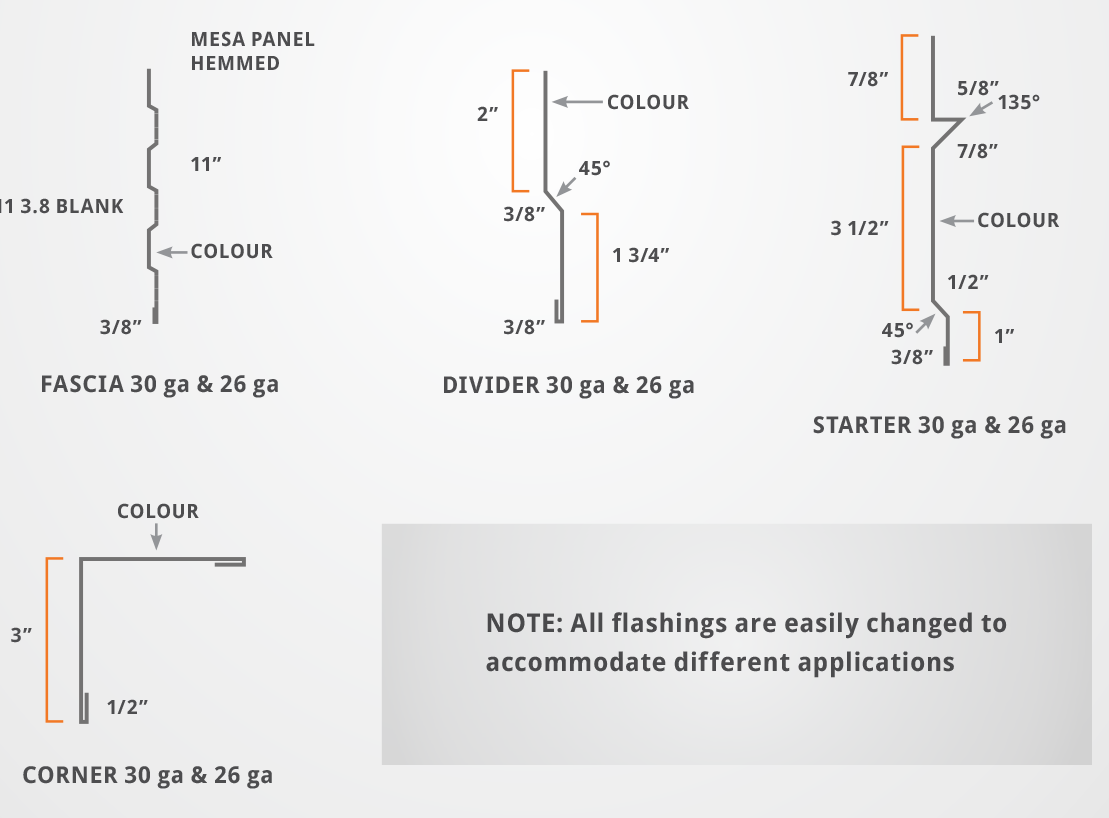

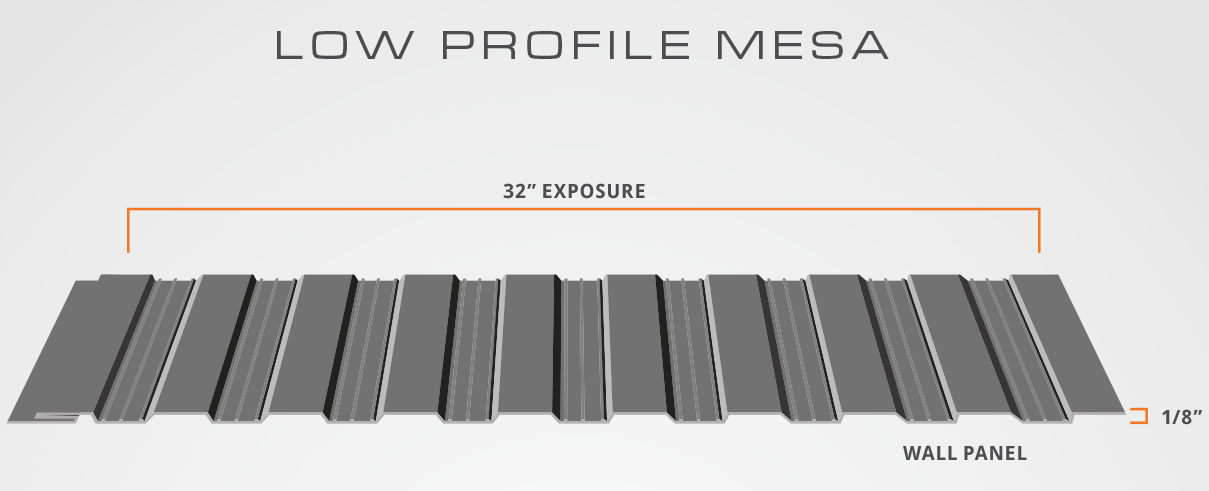

Mesa Panel
Mesa Panel
Mesa panels deliver a clean, modern aesthetic ideal for architectural wall cladding and feature applications. The flat-rib profile creates strong visual lines while maintaining the durability of metal systems.
Materials
24 or 22 gauge Galvalume® or pre-painted steel
Profile Options
Flat-rib architectural panel profile
Designed primarily for vertical wall applications
Customization
Custom panel lengths available
Wide range of colour options for contemporary designs
Installation & Performance
Concealed attachment system for a sleek appearance
Ideal for façades, accent walls, and mixed-material designs
Provides long-lasting performance with minimal maintenance
Install according to local building codes and manufacturer guidelines.
